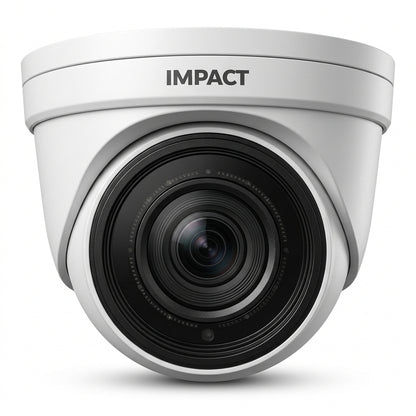

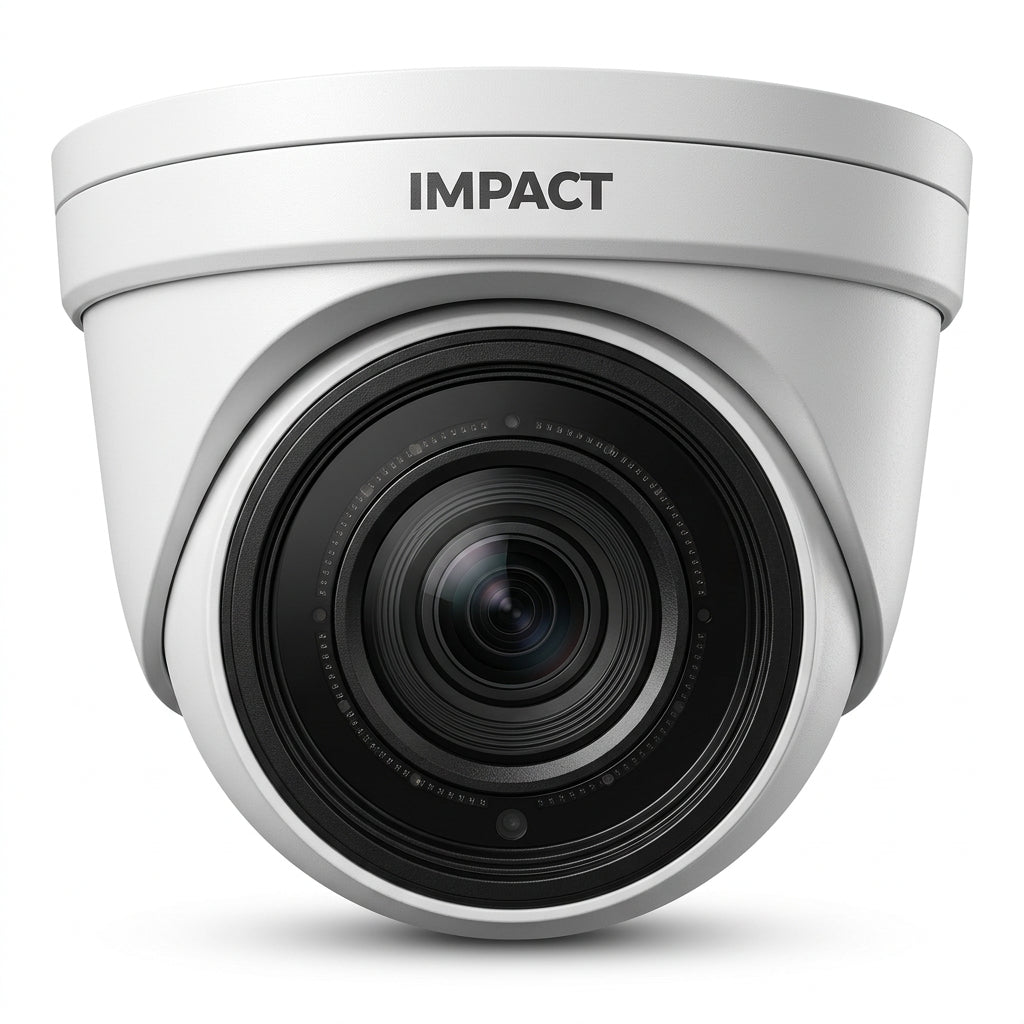

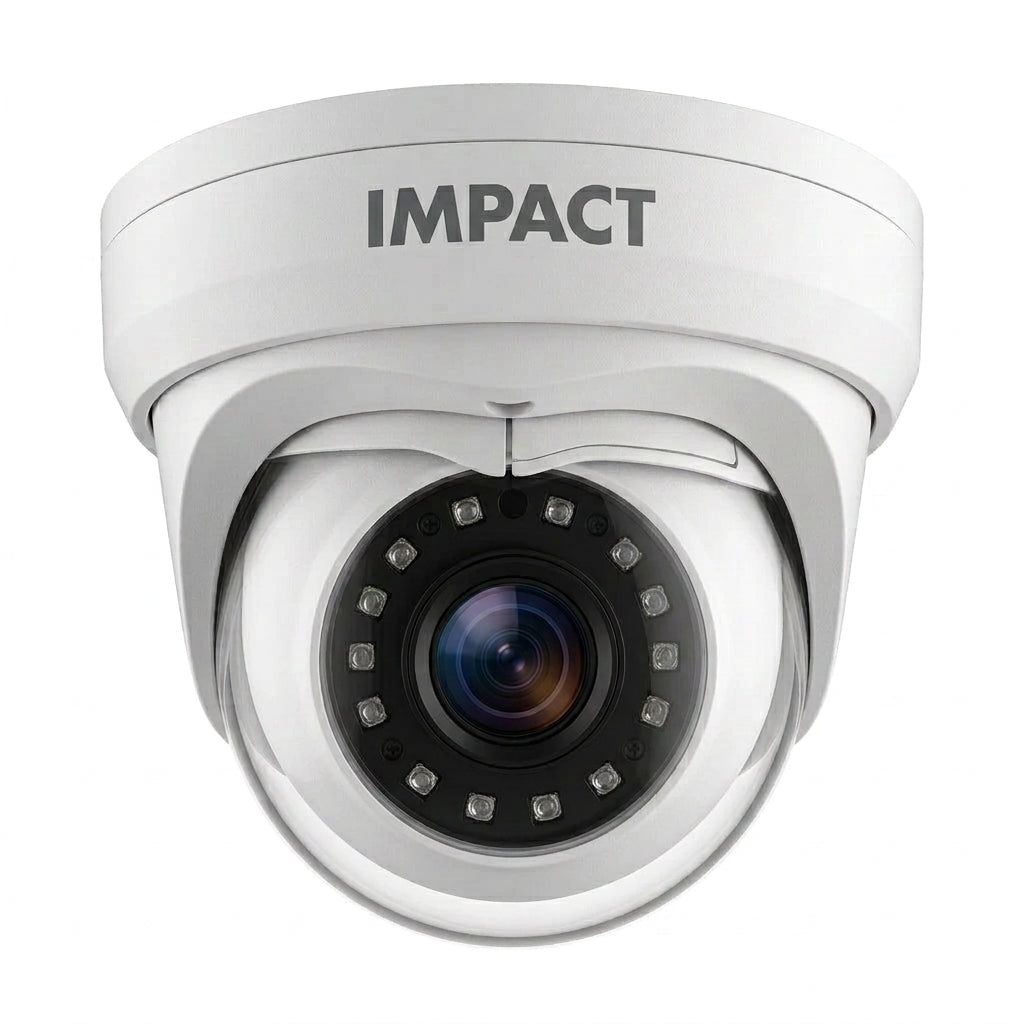

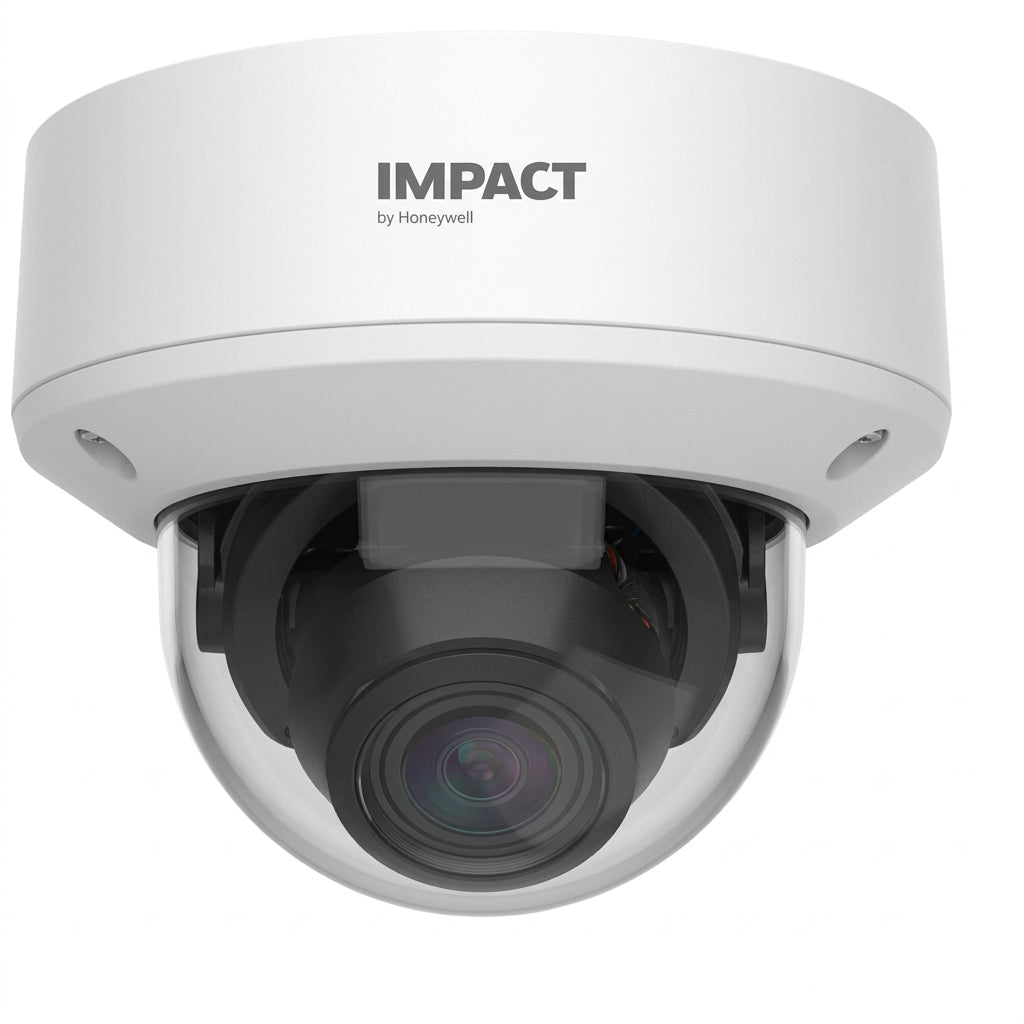

5MP Impact by Honeywell Smart IP Dome Camera (I-HIPD5PI-MF)

The Honeywell Impact I-HIPD5PI-MF is a premium, enterprise-grade 5-megapixel IP network dome camera engineered for low-profile, high-definition indoor and outdoor surveillance. It delivers ultra-sharp 2592 x 1944 video resolution at a fluid 30 frames per second, making it perfect for capturing fine details like faces and license plates. Carrying official STQC certification, this dome camera complies with the stringent technical standards mandated for government, banking, public sector tenders, and corporate security infrastructure.

• 5MP Ultra HD Video: Crystal-clear monitoring at up to 2592 x 1944 resolution running at full 30fps.
• STQC Certified: Fully approved and compliant for government procurement and institutional tenders.
• Advanced AI Functions: Built-in edge intelligence supports Face Recognition, Human & Vehicle Detection, Line Crossing, Perimeter Intrusion, Heat Mapping, Crowd Density, and Queue Length Detection.
• Balanced Night Vision: Smart IR technology uniformly illuminates pitch-black spaces up to 30 metres away without overexposing nearby subjects.
• Audio Surveillance: Integrated high-sensitivity built-in microphone for real-time audio recording and synchronization.
• Edge Retention Storage: Onboard Micro SD card slot supports up to 256GB for localized backup during unexpected network downtime.
• Weatherproof Metal Dome: Heavy-duty, full-metal housing with an IP67 weatherproof rating, engineered to operate seamlessly from -35°C up to +60°C.
• Bandwidth & Storage Optimization: Utilizes high-efficiency H.265+ compression to minimize network load while offering flexible power options via Power over Ethernet (PoE) or 12V DC.




  Technical Specifications

  Category	Specification Details
  Image Sensor	1/2.7" Progressive Scan CMOS
  Max Resolution	5 Megapixels (2592 × 1944 pixels)
  Frame Rate	Up to 25/30fps @ 5MP
  Lens Options	3.6mm Fixed Lens (M12 mount)
  Aperture & FOV	F1.6 Aperture | Field of View: Horizontal 79°, Vertical 56°, Diagonal 106°
  Min. Illumination	Color: 0.003 Lux @ F1.6 (AGC ON) | B/W: 0 Lux with IR illumination active
  Video Compression	H.265+ / H.265 / H.264 (Triple-Stream support)
  Image Enhancement	True WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction), BLC, Privacy Masking
  Audio	Built-in Microphone
  Network Interface	1x RJ45 10M/100M self-adaptive Ethernet port
  Protocols & API	TCP/IP, HTTP, HTTPS, RTSP, DHCP, NTP, SMTP, SNMP, ONVIF (Profile S/G/T/M)
  Onboard Storage	Micro SD/SDHC/SDXC slot, up to 256 GB
  Protection Rating	IP67 Weatherproof Ingress Rating
  Housing Material	Heavy-duty Full Metal Dome Casing
  Power Supply	12V DC / PoE (IEEE 802.3af)
  Power Consumption	Low-efficiency design: 2.5W to 3.5W (IR Off) | 4.5W to 6W max (IR On)
  Operating Temp.	-35°C to +60°C (-31°F to 140°F) | Humidity 95% or less RH
  Dimensions & Weight	100 mm x 100 mm x 90 mm | Weight: ~415 grams
