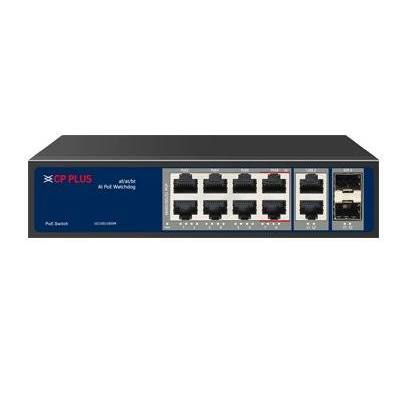

CP PLUS 12-Port Gigabit AI PoE Switch (CP-ANW-GPU8G2F2-12)

The CP PLUS CP-ANW-GPU8G2F2-12—a high-performance, 12-port unmanaged Gigabit AI PoE switch. Engineered specifically for heavy-duty IP CCTV surveillance systems, wireless access points, and remote network deployments, it delivers 120W of total PoE power combined with ultra-fast Gigabit speeds and intelligent AI troubleshooting features.

Feature / Metric	Specification Details
Model	CP-ANW-GPU8G2F2-12 (also cataloged as CP-ANW-GPU8G2F2-N12)
Total Ports	12 Ports
PoE Ports	8 × 10/100/1000 Mbps RJ-45 Ports
Uplink Ports	2 × 10/100/1000 Mbps RJ-45 Ports
SFP Slots	2 × Gigabit SFP Slots (Fiber Ready)
PoE Power Budget	120W Total Budget
PoE Standards	IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
Port Power Output	Ports 1–6: Up to 30W per port Ports 7–8: Up to 60W per port (PoE bt)
Switching Bandwidth	24 Gbps
Packet Forwarding Rate	17.9 Mpps
MAC Address Table	8K
Transmission Method	Store-and-Forward
Surge Protection	6KV Common Mode Protection
Smart Features	AI PoE Watchdog (Automatic device reboot)
