CP PLUS 6-Port Fast Ethernet AI PoE Switch (4 PoE + 2 Uplink, 65W, Watchdog) | CP-ANW-HP4H2-N65
CP PLUS 6-Port Fast Ethernet AI PoE Switch (4 PoE + 2 Uplink, 65W, Watchdog) | CP-ANW-HP4H2-N65
Regular price
Rs. 1,499.00
Regular price
Rs. 2,399.00
Sale price
Rs. 1,499.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

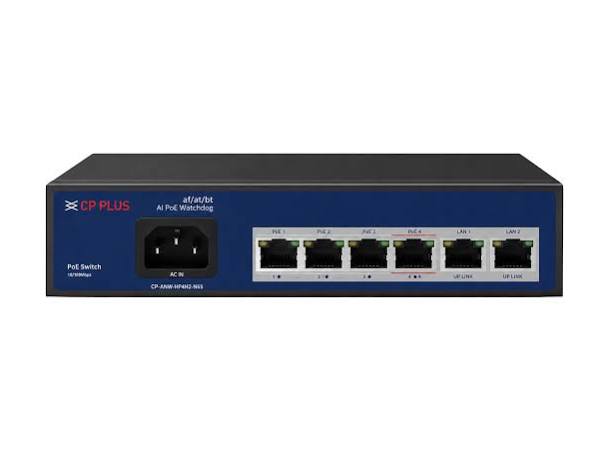

The CP PLUS CP-ANW-HP4H2-N65, a high-performance 6-Port Fast Ethernet AI PoE switch engineered specifically for CCTV surveillance, IP cameras, wireless access points (APs), and smart home networking. Designed for flawless plug-and-play operation, this unmanaged switch brings advanced power delivery and intelligent automation to your security system
Technical Specifications Table
Technical Specifications Table
| Specification | Details |
|---|---|
| Model Number | CP-ANW-HP4H2-N65 (CP-ANW-HPU4H2-65 Series) |
| Total Ports | 6 Ports (4 x PoE + 2 x Uplink) |
| Port Speed | 10/100 Mbps RJ45 Auto-Negotiation |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Total PoE Power Budget | 65W |
| Max Port Output | Port 1–3: 30W max each | Port 4: 60W max (BT) |
| Transmission Range | 100 Metres (Standard Mode) | 250 Metres (Extend Mode @ 10Mbps) |
| Switching Capacity | 1.2 Gbps |
| MAC Address Table | 2K entries |
| Hardware Protection | 6KV Lightning protection, 8KV Air (6KV Contact) ESD surge protection |
| Power Input | AC 100V–240V 50/60Hz |
