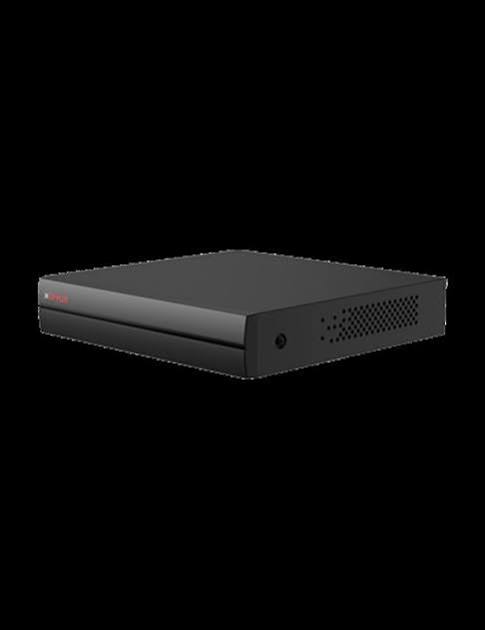

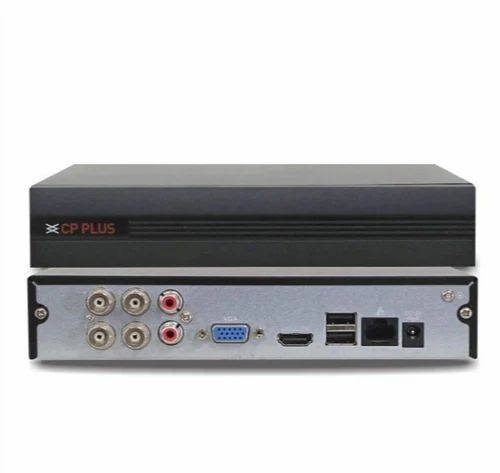

CP PLUS CP-UVR-1601E1V-I 16-Channel AI Hybrid Digital Video Recorder (DVR)
CP PLUS CP-UVR-1601E1V-I 16-Channel AI Hybrid Digital Video Recorder (DVR)
Regular price
Rs. 10,570.00
Regular price
Rs. 12,350.00
Sale price
Rs. 10,570.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CP PLUS CP-UVR-1601E1V-I is a high-performance, industrial-grade 16-Channel Hybrid Digital Video Recorder designed to upgrade traditional security infrastructures to modern AI intelligence. Operating on an embedded Linux system, it supports auto-adaptive video signaling to effortlessly merge HDCVI, AHD, TVI, legacy CVBS, and IP cameras over standard coaxial cables.
| Feature / Category | Specification Details |
|---|---|
| Processor & OS | Embedded Industrial-Grade Processor / Embedded LINUX |
| Analog Video Inputs | 16 Channels, BNC Interfaces (Auto-detection) |
| IP Video Inputs | Up to 18 Channels (Analog channels can be disabled to swap for IP inputs) |
| Max Network Bandwidth | 64 Mbps Incoming Bandwidth |
| Supported Formats | HDCVI / AHD / TVI / CVBS / IP |
| IP Camera Resolution | Up to 6MP per channel |
| Recording Resolution | 1080N, 720P, 960H, D1, CIF |
| Video Compression | AI Coding / Instastream / H.265+ / H.265 / H.264+ / H.264 |

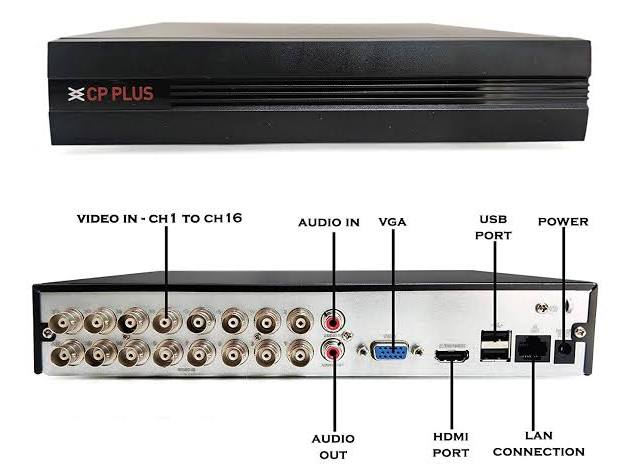

| Display Outputs | 1 × HDMI, 1 × VGA (Simultaneous Display Output) |
| Audio Interfaces | 1 Channel RCA Input / 1 Channel RCA Output (Supports Audio over Coax on all 16 channels) |
| Storage Capacity | 1 × SATA Port (Supports up to 16TB Internal HDD, Hard Disk not included) |
| Smart Analytics | 16-Channel Intelligent Motion Detection Plus (IMD+) with Human/Vehicle tracking |
| USB Interfaces | 2 × USB 2.0 Ports |
| Network Interface | 1 × RJ-45 Port (10/100 Mbps Ethernet) |
| Power Supply / Draw | DC 12V / 1.5A (< 10W without HDD installed) |
