Swiftech

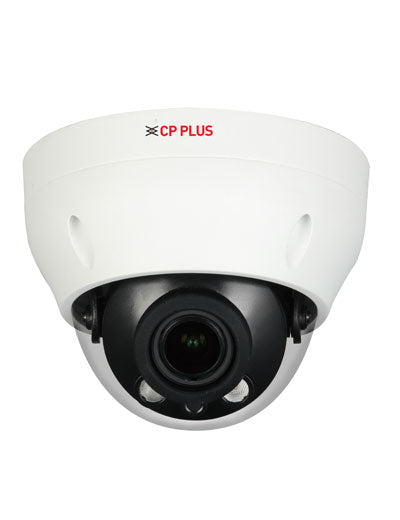

CP-USC-DC24FL4-V3 2.4MP IR Dome Camera

CP-USC-DC24FL4-V3 2.4MP IR Dome Camera

Regular price Rs. 4,123.00
Regular price Rs. 5,698.00 Sale price Rs. 4,123.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • 1/2.7” 2.4MP CMOS Image Sensor (0.9407cm)
  • Max. 30fps@2.4MP
  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 2.7mm~12mm Varifocal Lens
  • IR Range of 40 Mtrs., IP67
  • HD and SD output Switchable
  • Image Sensor 1/2.7" 2.4MP PS CMOS (0.9407cm)
    Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
    Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
    White Balance Auto / Manual
    Gain Control (AGC) Auto / Manual
    ICR Auto (ICR)/Manual
    Lens 2.7mm~12mm Varifocal
    Max Aperture F1.8
    Lens Type Vari-Focal
    Close Focus Distance 500mm ; 19.7''
    Mount Type Board-in
    S/N Ratio More than 65dB
    DORI Distance 25m (Detect) 63m(Observe) 125m(Recognize) 250m(Identify)
    Back Light Compensation BLC / HLC / DWDR
    Video Streaming 25/30fps@2.4MP, 25/30/50/60fps@720P
    Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
    Angle of View H: 106°~33° ; V: 56°~19°
    IR IR Range of 40 Mtr., Smart IR
    OSD Multi-language
    Casing Plastic
    Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
    Power Source 12V DC ±30%
    Power Consumption Max 3.5W (12V DC, IR on)
    Weatherproof Standard IP67
    Dimension Φ122mm×98.1mm
    Weight 0.30kg
