Swiftech

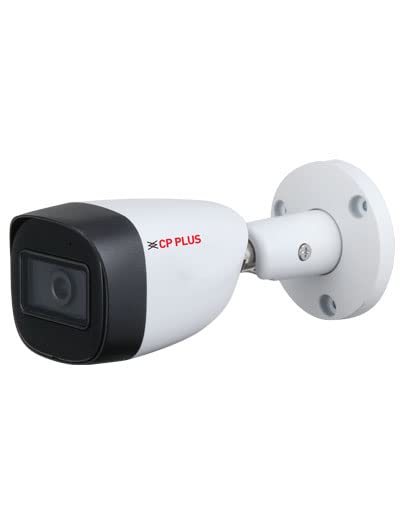

CP-USC-TA50ML3-S 5MP IR Bullet Camera CP PLUS

CP-USC-TA50ML3-S 5MP IR Bullet Camera CP PLUS

Regular price Rs. 3,325.00
Regular price Rs. 4,789.00 Sale price Rs. 3,325.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • 1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)
  • Max 25fps@5MP (16:9 video output)
  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 3.6mm Fixed lens (2.8mm optional)
  • IR Range of 30Mtrs., Smart IR, IP67
  • Support Starlight Technology
  • CVI/CVBS/AHD/TVI switchable
  • Image Sensor 1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)
    Minimum Illumination 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
    Effective Pixels 2880 (H) × 1620 (V)
    Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
    White Balance Auto / Manual
    Gain Control (AGC) Auto / Manual
    ICR Auto switch by ICR
    Lens 3.6mm (2.8mm optional)
    Max Aperture F1.6
    Auto Iris Fixed iris
    Lens Type Fixed-focal
    S/N Ratio >65dB
    DORI Distance 3.6mm: 80m (Detect) 32m (Observe) 16m (Recognize) 8m (Identify) 2.8mm: 63.6m (Detect) 25.4m (Observe) 12.7m (Recognize) 6.4m (Identify)
    Back Light Compensation BLC / HLC / DWDR
    Video Streaming CVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps; CVBS: PAL: 960H; NTSC: 960H
    Privacy Mask Off/on (8 area, rectangle)
    Angle of View 3.6mm: 109° × 92° × 48° (diagonal × horizontal × vertical) 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
    IR Range IR Range of 30Mtr., Smart IR
    Casing Metal throughout the whole casing
    Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) ; <95% (non-condensation)
    Storage Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
    Power Source 12V DC ±30%
    Power Consumption Max 3.7W (12V DC, IR on)
    Weatherproof Standard IP67
    Dimension 166.6mm×69.7mm×70.0mm
    Weight 0.33kg
View full details
