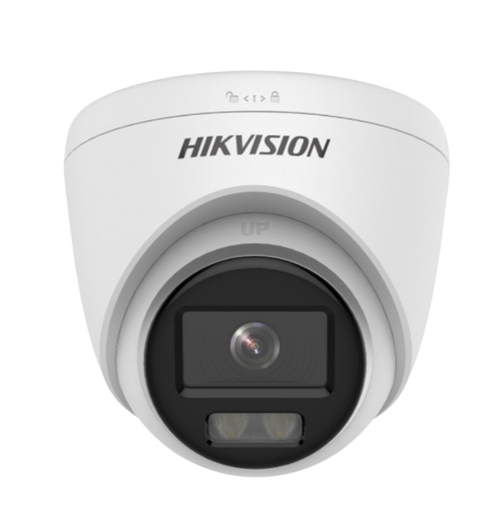

HIKVISION TURBO HD COLORVU INDOOR AUDIO FIXED TURRET CAMERA 3K DS-2CE70KF0T-PFS
HIKVISION TURBO HD COLORVU INDOOR AUDIO FIXED TURRET CAMERA 3K DS-2CE70KF0T-PFS
Pickup available at 1st block, HMT layout, Nagsandra post, Banglore-73
Usually ready in 24 hours
Product Description
-
High quality imaging with 3K, 2960 × 1665 resolution
-
24/7 color imaging with F1.0 aperture
-
2.8 mm and 3.6 mm fixed focal lens
-
Up to 20 m white light distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
High quality audio with audio over coaxial cable, built-in mic
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Turret Camera |
|
Product Code |
DS-2CE70KF0T-PFS |
|
Camera |
|
|
Image Sensor |
3k Cmos |
|
Signal System |
Pal/Ntsc |
|
Resolution |
2960 (h) × 1665 (v) |
|
Frame Rate |
Tvi: 3k@20fps, 4 Mp@25fps/30fps, 1080p@25fps/30fps Ahd: 5 Mp@20fps, 4 Mp@25fps/30fps Cvi: 4 Mp@25fps/30fps Cvbs: Pal/Ntsc |
|
Min. Illumination |
0.001 Lux @ (f1.0, Agc On), 0 Lux With White Light |
|
Shutter Time |
Pal: 1/25 S To 1/50,000 S;Ntsc: 1/30 S To 1/50,000 S |
|
Lens |
2.8 Mm, 3.6 Mm Fixed Focal Lens |
|
Field Of View |
2.8 Mm, Horizontal Fov: 102°, Vertical Fov: 56°, Diagonal Fov: 122° 3.6 Mm, Horizontal Fov: 80°, Vertical Fov: 45°, Diagonal Fov: 96° |
|
Lens Mount |
M12 |
|
Light Alarm |
Solid Light Alarm (white Light) |
|
Day & Night |
24/7 Color Imaging |
|
Wdr (wide Dynamic Range) |
Digital Wdr |
|
Angle Adjustment |
Pan: 0°To 360°, Tilt: 0° To 75°, Rotation: 0° To 360° |
|
Image |
|
|
White Light |
Auto/Off |
|
Image Mode |
Std/High-Sat/Highlight |
|
Agc |
Yes |
|
Day/Night Mode |
Color |
|
White Balance |
Auto/Outdoor/Global/Manual |
|
Ae (auto Exposure) Mode |
Dwdr,Blc,Hlc,Global,Hls |
|
Noise Reduction |
2d Dnr |
|
Language |
English |
|
Function |
Brightness,Contrast,Mirror,Defective Pixel Correction,Sharpness,Anti-Banding,Smart Light |
|
Interface |
|
|
Video Output |
Switchable Tvi/Ahd/Cvi/Cvbs |
|
Audio In |
Built-In Mic |
|
General |
|
|
Operating Conditions |
-40°c To 60°C (-40°f To 140°F), Humidity: 90% Or Less (non-condensing) |
|
Power Supply |
12 Vdc ± 25%, *you Are Recommended To Use One Power Adapter To Supply The Power For One Camera. |
|
Consumption |
Max. 2.5 W |
|
Material |
Plastic |
|
White Light Range |
Up To 20 M |
|
Communication |
Hikvision-C |
|
Dimension |
Φ 85.02 Mm × 81.25 Mm (φ 3.35" × 3.2") |
|
Weight |
Approx. 165.5 G (0.36 Lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
