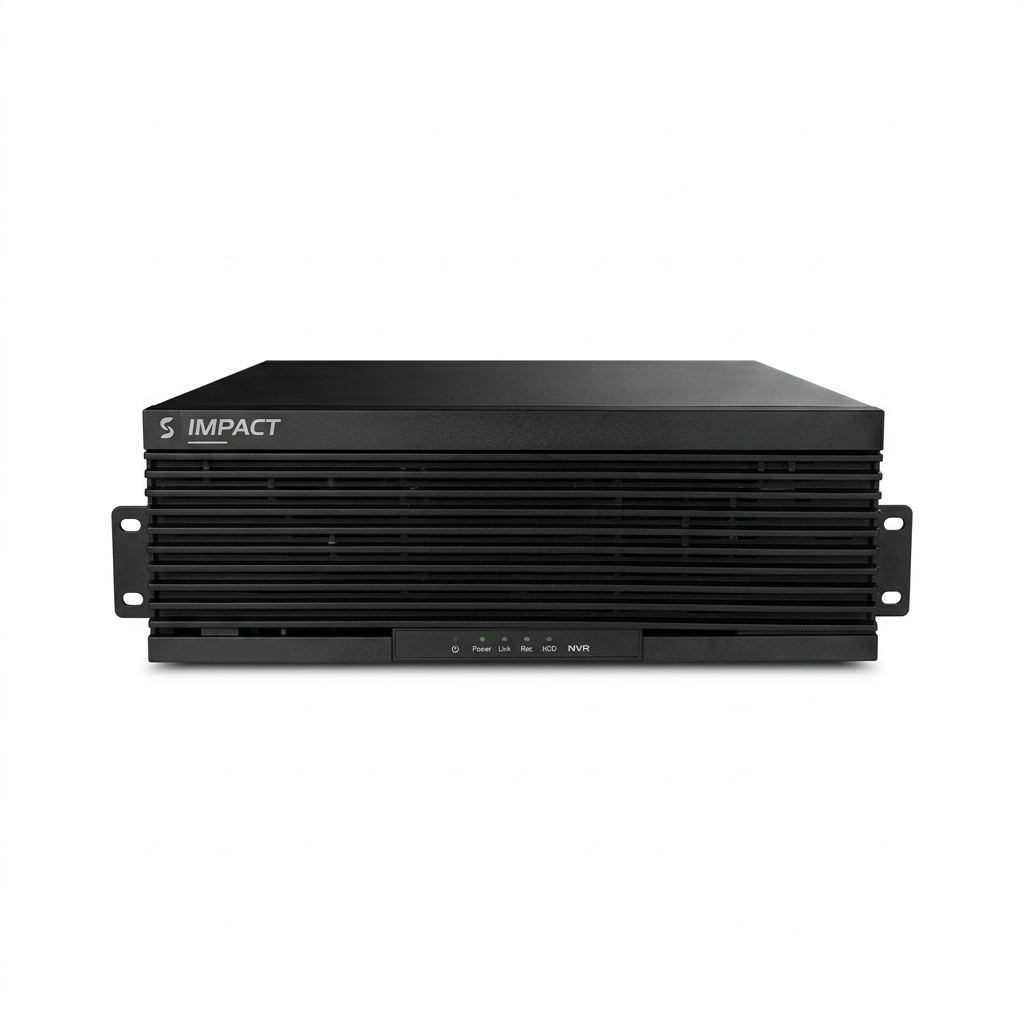

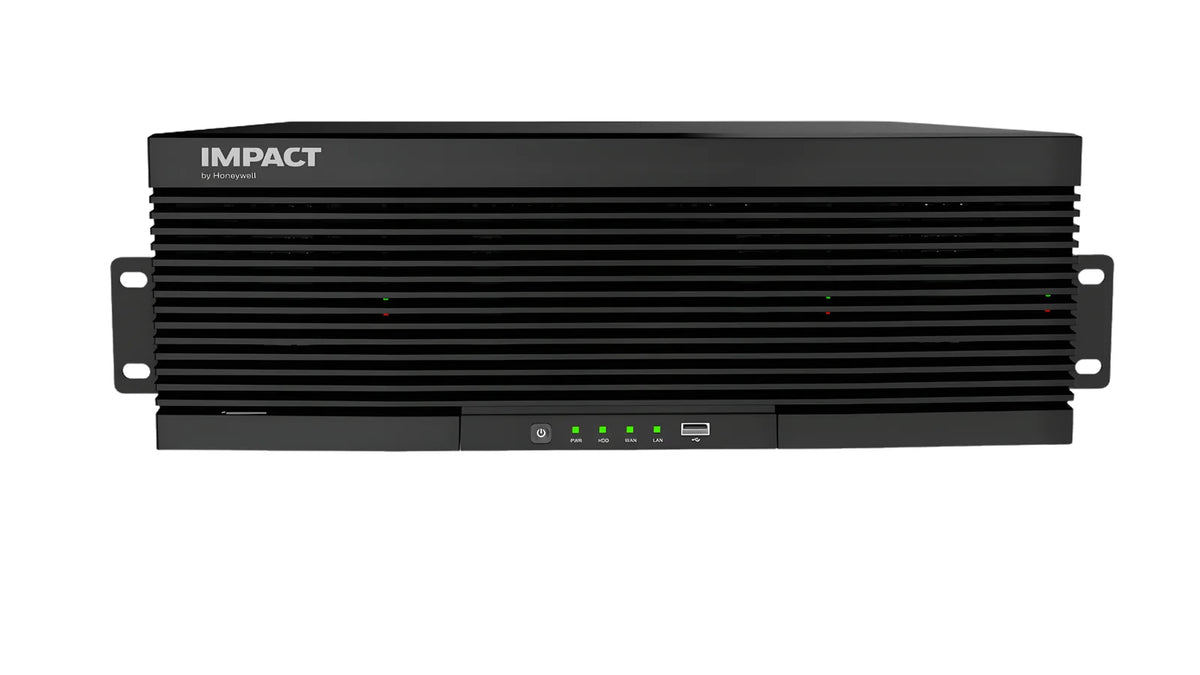

Honeywell Impact 256-channel Network Video Recorder (NVR) I-HPNVR-16256

The Honeywell Impact I-HPNVR-16256 is an enterprise-grade, ultra-high-capacity 256-channel Network Video Recorder (NVR) meticulously engineered for mega-surveillance and mission-critical safety environments. Designed to effortlessly manage vast camera networks, this data-center-ready 16-SATA system delivers massive storage capabilities, resilient hardware redundancies, and built-in edge AI analytics processing. It provides a future-proof, stable solution for massive commercial complexes, safe city infrastructure, airports, and industrial plants.

• Massive 256-Channel Capacity: Monitors and records up to 256 IP cameras simultaneously on a single unified enterprise system.
• Ultra-High Network Bandwidth: Sustains high performance without video drops, thanks to an extensive 1024 Mbps incoming and 800 Mbps outgoing throughput.
• Enterprise RAID Data Protection: Prevents video loss with robust hardware-level storage arrays supporting RAID 0, 1, 5, 6, and 10 configurations.
• Hot-Swappable Storage Bays: Replaces faulty hard drives on-the-fly without turning off or interrupting ongoing system operations.
• Intelligent AI Video Analytics: Native processing support for Face Recognition, Human & Vehicle Detection, Heat Mapping, and Intrusion Alerts.
• Multi-Screen Control Room Output: Features 4 HDMI outputs supporting independent display configurations to build complex visual monitoring matrices.


  Technical Specifications

  Feature / Metric	Specification Details
  Model Number	I-HPNVR-16256
  IP Video Input	Up to 256 Channels
  Max Recording Resolution	Up to 12 Megapixels (4K UHD)
  Maximum Bandwidth	Incoming: 1024 Mbps | Outgoing: 800 Mbps
  Video Compression	Smart H.265+ / H.265 / H.264
  Storage Interfaces	16 × SATA Slots (Up to 18TB per HDD; 288TB Total capacity)
  Video Outputs	4 × HDMI Ports (Up to 4K resolution) | 1 × VGA Port
  Network Interface	2 × RJ45 Gigabit Ethernet Ports (10/100/1000 Mbps)
  Storage Backups	Local RAID, NAS Storage, FTP Backup, and Cloud Upload
  External I/O Interfaces	16 × Alarm Inputs / 4 × Alarm Outputs | 1 × Audio In / 1 × Audio Out
  Data Connections	USB 2.0, USB 3.0, and RS-485 interface protocols
  Power Infrastructure	AC 100–240V internal system designed for continuous 24/7/365 usage
  Form Factor	Rack-mountable enterprise chassis
