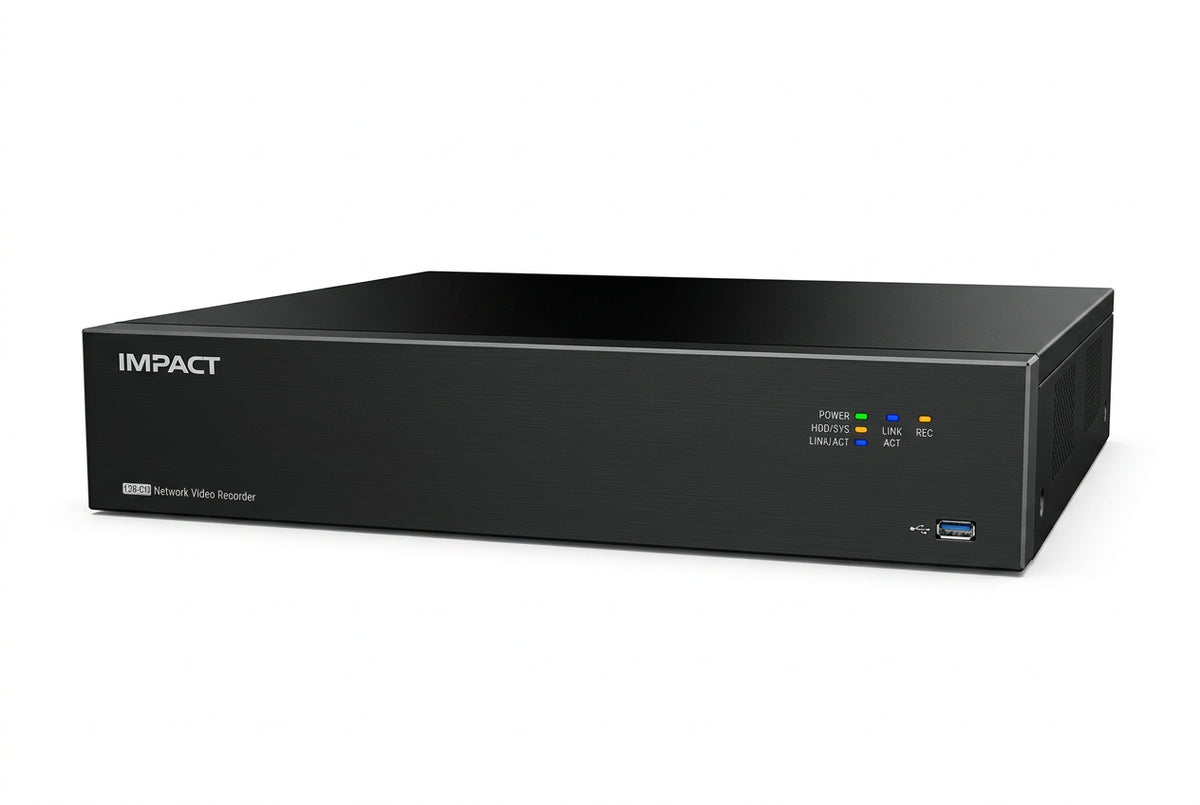

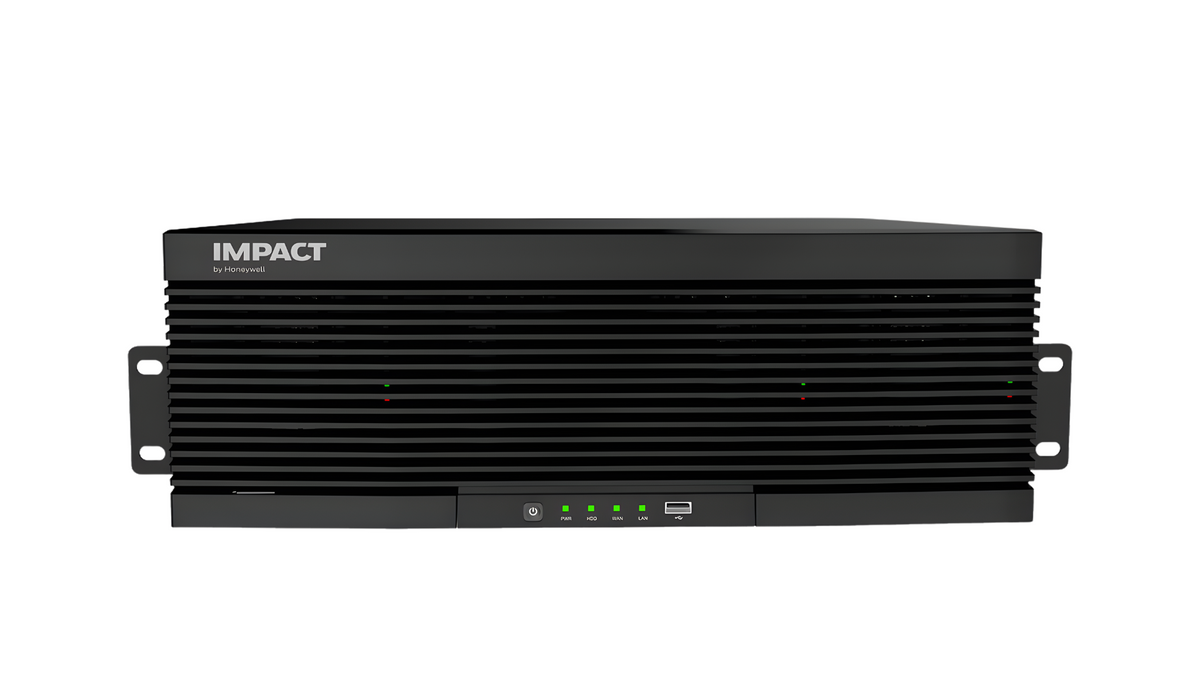

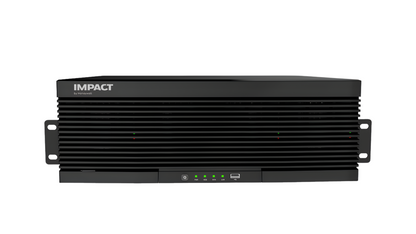

Honeywell Impact 64-channel Network Video Recorder (NVR) I-HPNVR-1664

The Honeywell Impact I-HPNVR-1664 is an enterprise-grade 64-channel Network Video Recorder (NVR) built for massive, mission-critical surveillance networks. Designed to handle up to 64 IP cameras simultaneously, this high-performance NVR delivers crystal-clear 4K Ultra HD (12MP) recording and an ultra-wide 640 Mbps bandwidth.

• Massive 64-Channel Capacity: Connect and manage up to 64 IP cameras simultaneously from one central hub.
• Ultra-HD 4K Recording: Supports elite video decoding up to 12MP resolution for unmatched image clarity.
• Pro-Grade Data Redundancy: Built-in hardware support for RAID 0, 1, 5, 6, and 10 prevents data loss if a hard drive fails.
• Enormous Storage Potential: 16 SATA interfaces support up to 18TB per drive, giving you up to 288TB of total storage.
• Edge AI Smart Analytics: Built-in intelligent features including Face Detection, Perimeter Intrusion, Vehicle Recognition, and Line Crossing.
• Multi-Screen Monitoring: 4 HDMI outputs and 1 VGA output allow you to view live feeds across multiple displays up to 4K/8K resolution combinations.


  Technical Specifications
  • Video Input: 64-Channel IP Video Input
  • Max Resolution: Up to 12MP (4K Ultra HD)
  • Max Bandwidth: 640 Mbps Incoming / 640 Mbps Outgoing
  • Storage Interfaces: 16 × SATA Ports (Up to 18TB per HDD, Max 288TB total)
  • RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • Video Outputs: 4 × HDMI (Independent/Asynchronous), 1 × VGA
  • Network Interfaces: 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
  • USB Ports: 1 × USB 2.0 (Front), 2 × USB 3.0 (Rear)
  • Alarm Interfaces: 16 Alarm Inputs / 4 Alarm Outputs
  • Video Compression: Smart H.265+ / H.265 / H.264+ / H.264
